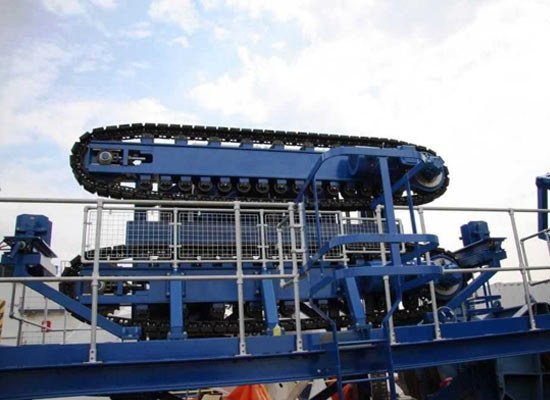

Tensioner

Technical specification

The following 1 x 10 Te self-contained (“plug and play”) side loading AC electric 2-track tensioner complete with the following benefits & features:

400 V/50 Hz AC electric drive for smooth & stepless operation
No external cooling required from vessel
Digital motor / track / machine to machine speed synchronisation*
Integral & independent dual redundant speed and distance system
Integral load cell and pitch compensated tension control system
Integral hydraulic supply for track open/close, track squeeze and brakes (using bio degradable oil)
System alarms and instrumentation provided on tensioner mounted HMI display & remote control console
Back up tensioner control via hardwired local control pendant.
Hydraulic manifold / valve block housed with a stainless steel enclosure
Drive panels to be painted stainless steel with sealed-air marine air conditioning units
Resistor banks to be “run quiet” natural self-cooled units
Designed and manufactured in accordance with IP56 (minimum) ingress protection levels

*Speed synchronisation with other manufacturers equipment is subject to the 3rd party equipment’s capability.
